SolidCraft

This is a community package of SolidCraft, maintained independently and unaffiliated with the SolidCraft project. It repackages the official upstream Linux release build unmodified.

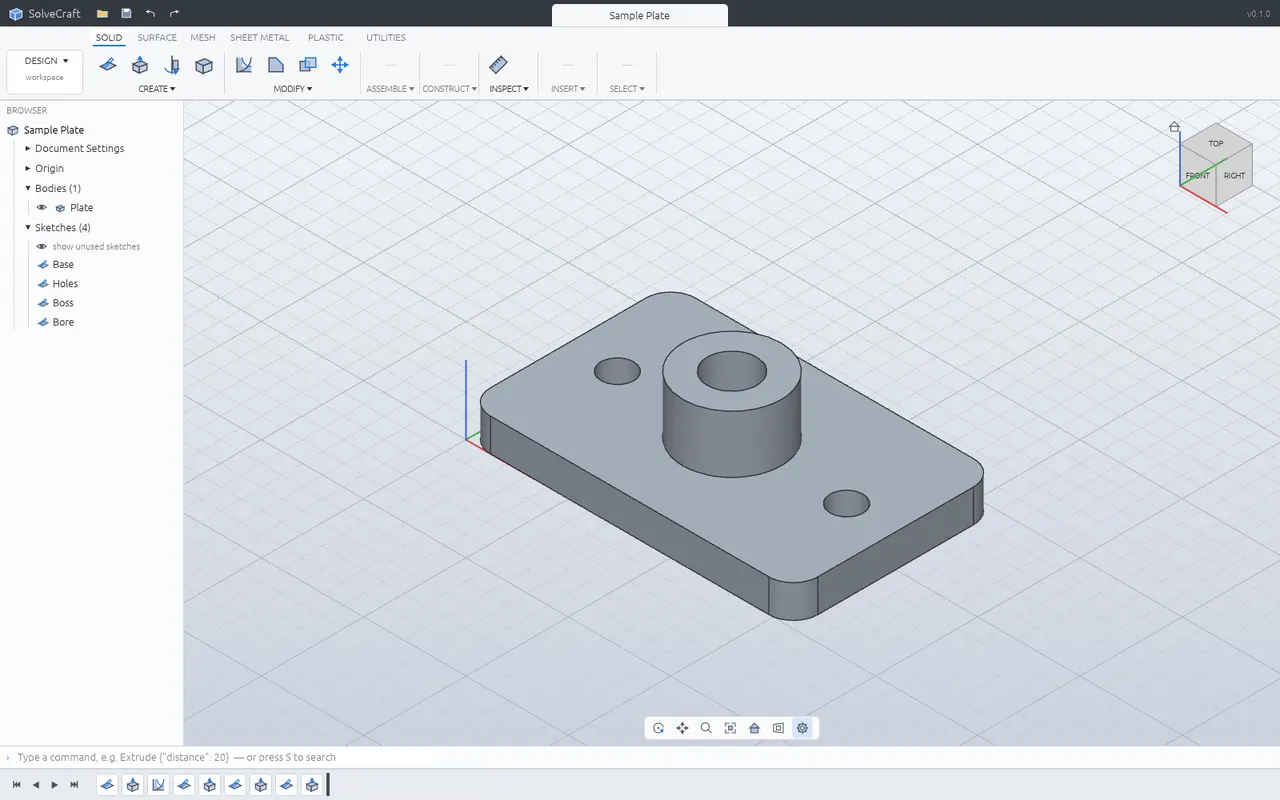

SolidCraft is an open-source parametric 3D CAD application written in Rust. Sketch on a plane, constrain and dimension the sketch, turn profiles into solids on a feature timeline, and change a parameter to watch the timeline rebuild.

• Sketches with a constraint solver and parameter-driven dimensions
• Extrude, revolve, sweep, loft, fillet, chamfer, shell, holes and patterns
• Components and joints, sheet metal, and a plastic-enclosure subset
• STEP and IGES import and export; 3MF, STL and OBJ
• Every action is a command, scriptable from a CLI, a JSON control channel and an MCP server

The headless command runner and MCP server is included: flatpak run --command=solidcraft-cli io.github.bherbruck.SolidCraft --help

Permissions: this package uses the same sandbox as upstream's own Flatpak manifest: display (Wayland, with X11 as a fallback), the GPU device, and the Documents folder. Files anywhere else are opened and saved through the system file chooser. No network access is granted.

Optional overrides:

• Let agents on the host reach the --control automation server: flatpak override --user --share=network io.github.bherbruck.SolidCraft
• Open files by path anywhere in your home folder: flatpak override --user --filesystem=home io.github.bherbruck.SolidCraft
